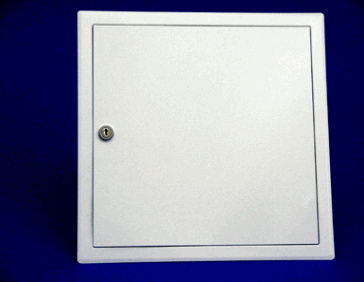

Kimberley Softline Metal Access Panel w/ Cylinder Key lock

Kimberley Softline Metal Access Panel w/ Cylinder Key lock

Powder coated Finish with Snap Lock Features •Offers the benefit of a completely smooth door panel •Made from galvanised sheet steel, painted in RAL9016 white.  Can be repainted if required. •The spring loaded locks open when pressure is applied to the door panel causing the door to swing open. •The latches engage and snap shut when pressure is reapplied to the door panel. •4 riveted , swivel anchors ensure safe wall or ceiling mounting. •Continuous one-piece frame with softened profile. • Demountable door panel. • Sheet steel thickness:  ◦Panel less than 400x400mm= 0.75mm ◦Panel greater than 400x400mm= 1 mm Specifications: Product Code    Cut-Out Size(mm) (A)           Outer Frame Size (mm) (B) K120562                     200 x 200                                     235 x 235 K120567                     300 x 300                                     335 x 335 K120568                     400 x 400                                     435 x 435 K120570                     500 x 500                                     535 x 535 K120571                      600 x 600                                     635 x 635
